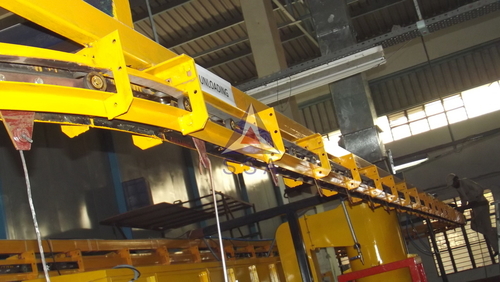

Over Head Conveyor

Name: Over Head Conveyor
Brand: SHREE SAI ASSOCIATES
Price: 500000 INR
Availability: InStock

Price 500000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Over Head Conveyor Specification

Rotation Type
360 Degree movement possible

Belt Type
Enclosed track, Chain driven

Features
Corrosion resistant, Custom layouts available

Motor Type
Induction Motor

Rack Capacity
As per design

Control System
Automatic/Manual

Wheel Type
Alloy steel trolley wheels

Lifting Speed
3-15 m/min (adjustable)

Condition
New

Lifting Capacity
Up to 50-200 kg per hook (varies as per model)

Max. Lifting Load
200 kg per point

Product Type
Over Head Conveyor

Max. Lifting Height
3-8 meters

Power Source
Electric

Power Consumption
2-5 kW (Depending on load)

Voltage
220-415 V AC

Length of Belt
Customizable as per requirement

Feature
Low Power Consumption, Maintenance Free Operation

Attributes
Modular Design, Flexible, Robust Construction

Mounting
Overhead, with suspenders

Material
Mild Steel / Stainless Steel

Equipment Type
Over Head Conveyor

Type of Drive Unit
Geared Motor Drive

Usage/Application
Automotive, Warehousing, Assembly Line, Packaging

Noise Level
<70 dB(A)

Customization
Available as per client layout

Chain Pitch
4" or 6" (varies with application)

Operating Temperature
-10°C to 55°C

Finish
Powder Coated / Painted

Capacity per Hour
250-500 kg/hr

Installation Type
Ceiling Mounted

About Over Head Conveyor

Product Description:

Our wide range of Overhead Chain Conveyors provides conveying solutions for assembly/surface finishing/transfer/heat treatment and other related applications in manufacturing units.

Overhead Conveyors utilizes a track, whether manual or driven, from which the conveying means and load handling takes place over work areas. Overhead conveyor can be installed to follow almost any continuous path, changing direction both horizontally and vertically. If able to use multiple drives, a single path can be several thousand feet. Some of its features include providing for highly flexible usage, rugged and versatile construction finish, offering for economic performance, suited for overhead ground applications as well as for medium and heavy loads up to 100 KG with load bar support among others. It will help user expand output, form mass production and reduce cost in order to make products price more competitive.

Overhead conveyors can be broken down into two categories.

Manual / Hand Pushed,

Powered.

Overhead conveyor can be supplied in either four angular track or I-Beam construction based upon weight capacity and application.

SPECIFICATIONS:

Four wheel Conveyor

Power & Free Conveyor

I - Beam Conveyor

Hinge Type Conveyor

These are custom made as per your requirements, layout & loads. Please send us your requirements.

FEATURES:

Long life

Resistant to corrosion

Excellent strength

Versatile Design for Industrial Applications

Our Over Head Conveyor supports a wide range of industries, including automotive, warehousing, and assembly lines, with ceiling-mounted installation and modular construction. The flexible, robust design ensures adaptability to unique operational layouts, while superior materials like mild or stainless steel provide durability and corrosion resistance. Suitable for both new and upgraded facilities, this conveyor integrates seamlessly into demanding environments.

Efficient, Low-Maintenance Performance

Utilizing advanced geared motor drives and alloy steel trolley wheels, this system delivers optimized performance with low power consumption-between 2-5 kW depending on the load. The enclosed chain-driven system minimizes operational noise below 70 dB(A) and offers maintenance-free operation, even in tough conditions. Automatic and manual control options ensure both efficiency and safety for continuous, reliable material handling.

FAQ's of Over Head Conveyor:

Q: How is the Over Head Conveyor installed and where can it be mounted?

A: The Over Head Conveyor is installed using a ceiling-mounted system with suspenders, ensuring maximum floor space utilization. It is ideal for use in facilities such as automotive plants, warehouses, assembly lines, and packaging units where overhead installation is beneficial.

Q: What materials and finishes are available for the conveyor system?

A: The conveyor is available in both mild steel and stainless steel constructions. Finishes include powder coating or painting, providing durability and corrosion resistance suitable for demanding industrial environments.

Q: When should I choose a 4-inch versus a 6-inch chain pitch?

A: Selecting between a 4-inch or 6-inch chain pitch depends on your specific application's load and operational needs. A 4-inch pitch offers tighter spacing for lighter items, while a 6-inch pitch is favorable for heavier loads or larger items, optimizing capacity and efficiency.

Q: What is the process for customizing the conveyor to my facility's layout?

A: Custom layouts are available to match your facility's requirements. During the consultation, our engineers assess your site and operational needs, then design and manufacture the conveyor system to your specific dimensions and workflow.

Q: How does the modular design of the conveyor benefit my operations?

A: The modular design allows easy expansion or reconfiguration as your production needs change. It simplifies installation, reduces downtime during upgrades, and enables flexible adaptation to evolving layouts or new process lines.

Q: What are the key benefits of using this overhead conveyor system?

A: Key benefits include efficient use of overhead space, low power consumption, maintenance-free operation, robust construction for long-term durability, and customizable solutions to fit varied applications. Its low noise output and enclosed track also enhance workplace safety and comfort.
