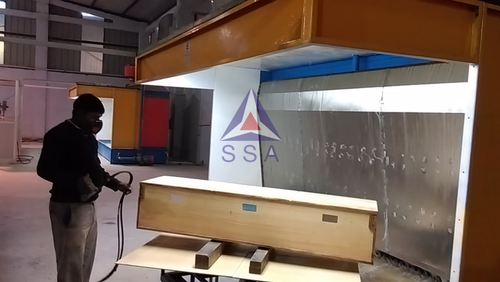

Bottom Draft Paint Booth

Bottom Draft Paint Booth

350000 INR/Number

Product Details:

  • Type Paint Booth
  • Surface Painted
  • Technology Suction Feed
  • Attributes Strong Durable Coats Evenly Rust Proof
  • Portable No
  • Protection System yes
  • Warranty 1 year
  • Click to View more

Bottom Draft Paint Booth Price And Quantity

  • 1 Number
  • 350000 INR/Number

Bottom Draft Paint Booth Product Specifications

  • No
  • 1 year
  • Paint Booth
  • Strong Durable Coats Evenly Rust Proof
  • Painted
  • yes
  • Suction Feed

Bottom Draft Paint Booth Trade Information

  • Cash Against Delivery (CAD) Cheque Cash in Advance (CID)
  • 3-4 Week
  • Asia
  • All India

Product Description

We have marked a dynamic and distinct position in the industry by offering an superior-grade assortment of Bottom Draft Paint Booth, which is especially designed for liquid painting solutions. The provided painting booths are made by our skilled professionals utilizing the A-1 quality basic material and the best equipment. Moreover, customers can buy these Bottom Draft Paint Booth in a variety of specifications at affordable prices

The design of booth is broad ranging from dry back to water curtain to bottom suction tailor designed depending upon article geometry and intricacy.

Types of booth:

  • Dry back
  • Water Walled
  • Tailor designed Bottom Suction

Salient Features:

  • Long Life of water contacting surfaces
  • Suitably coated bottom tank
  • Richly designed overspray arresting baffle trays
  • Dynamically balanced suction blower
  • Water recirculation system with paint coagulation/filtration system

Product Details:

Depending upon the component size, production volume, paint type and paint consumption and no. of operators the size and the type of booth is decided. Water Washed booths are ideal for liquid painting solutions esp. when the paint consumption is high. Down draft and side draft booths are two types of water washed booths available. A continuous flow of water is provided which collects the over-sprayed paint particles and removes from booth and thus providing with a clean & pollution free working area. Apart from that is the paint consumption is less a dry booth can also be recommended.

Down Draft (DD):

These booths are recommended for large or heavy articles


The water tanks are below ground level. Air suction is created downwards through the water tank. The suction chamber sucks the air/ paint mixture towards the water below, where the sludge is formed and is separated. At the baffles the remaining air particles are arrested. Turn table can be given in case if article rotation is desired for articles with less weight. Alternatively heavy article can be loaded from ground trolley or OH crane.


In this booth the air draft is in the downward direction. Articles are normally kept stationary and the operator moves around it. Over sprayed paint is dragged downwards with the air suction and the sludge is separated at the bottom tank. The clean water is pumped back again. The air is sucked through baffles and paint is separated from the air /paint mixture.
